NG-6

For the street and the track.

Six pistons, two-piece forged 7075, plenty of force and a fine, exact pedal.

NG-6 caliper, pixel art

Now, the real one

NG-6, photographed: two-piece forging, 7075 aluminium, hard anodised, or painted, 321.67 × 159.16 × 101.44 mm.

NG-6, photographed
NG-6 from the outer faceNG-6 from the bridge

Plenty, delivered smoothly

Strong braking force with a smooth delivery, and pedal feedback that is fine and exact.

Six pistons, even wear

Six pistons load the pad evenly, so it wears less.

Holds on when hot

Strong resistance to heat fade at high temperature: one caliper for the commute and the track day.

6 pistons, 54.95 cm2

Ø38Ø34Ø30

One side of the caliper, drawn to scale. The other side mirrors it.

3.24kg

With pistons

321.67mm

Long

180mm

Mount spacing

76cm²

Pad area

Behind 18 in wheels and up

Front axle. Mid-size sports and performance sedans: VW Golf GTI, Mercedes-AMG A45, Audi A4L, Ford Mustang. For street builds and club racing.

Disc and wheel drawn to scale, with the NG-6 at its true length.

Five colours

NG-6 in red

Red, yellow, blue or white, or the hard anodised grey of the NH race calipers.

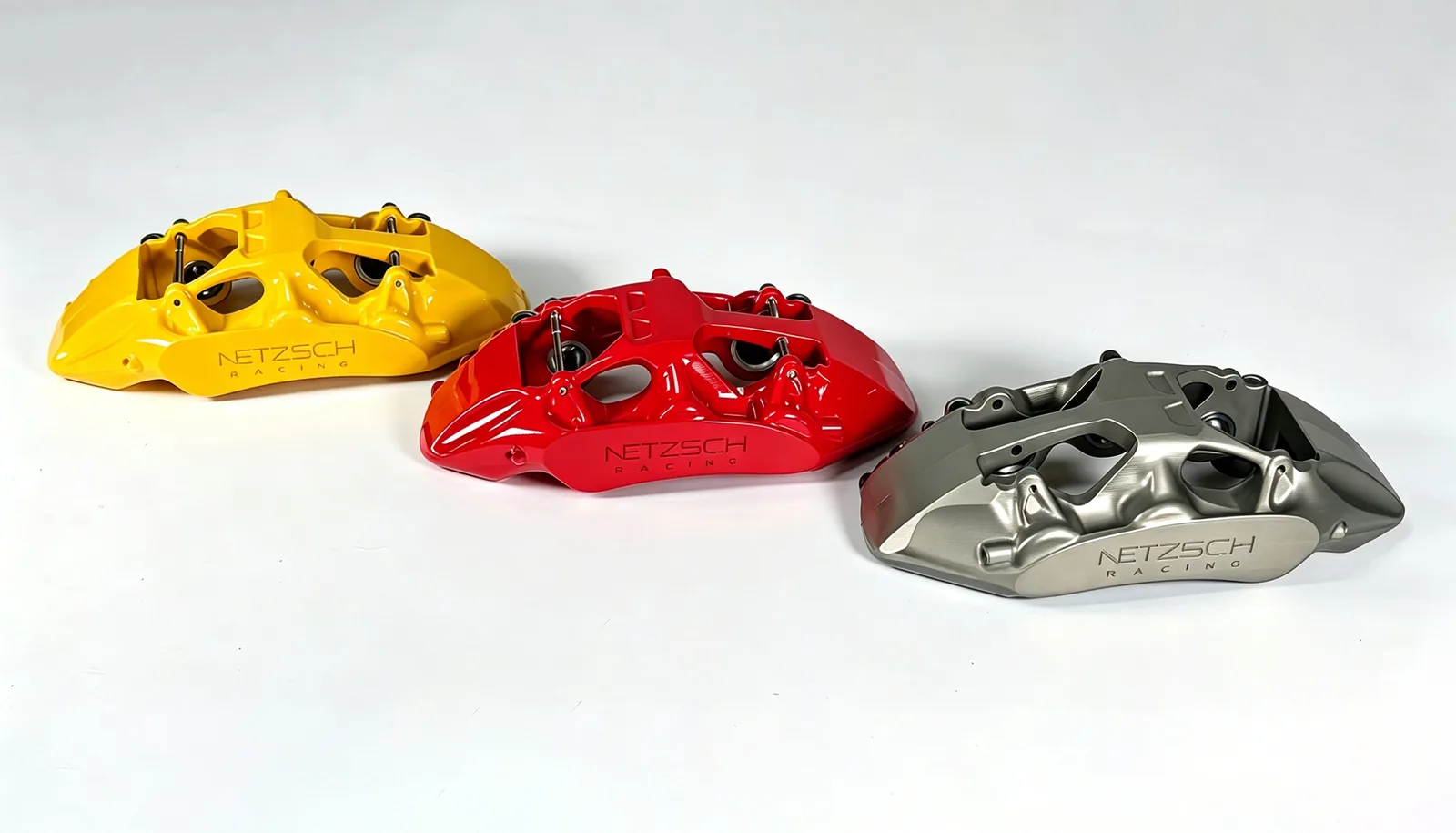

NG-6 in yellow, red and hard anodised grey

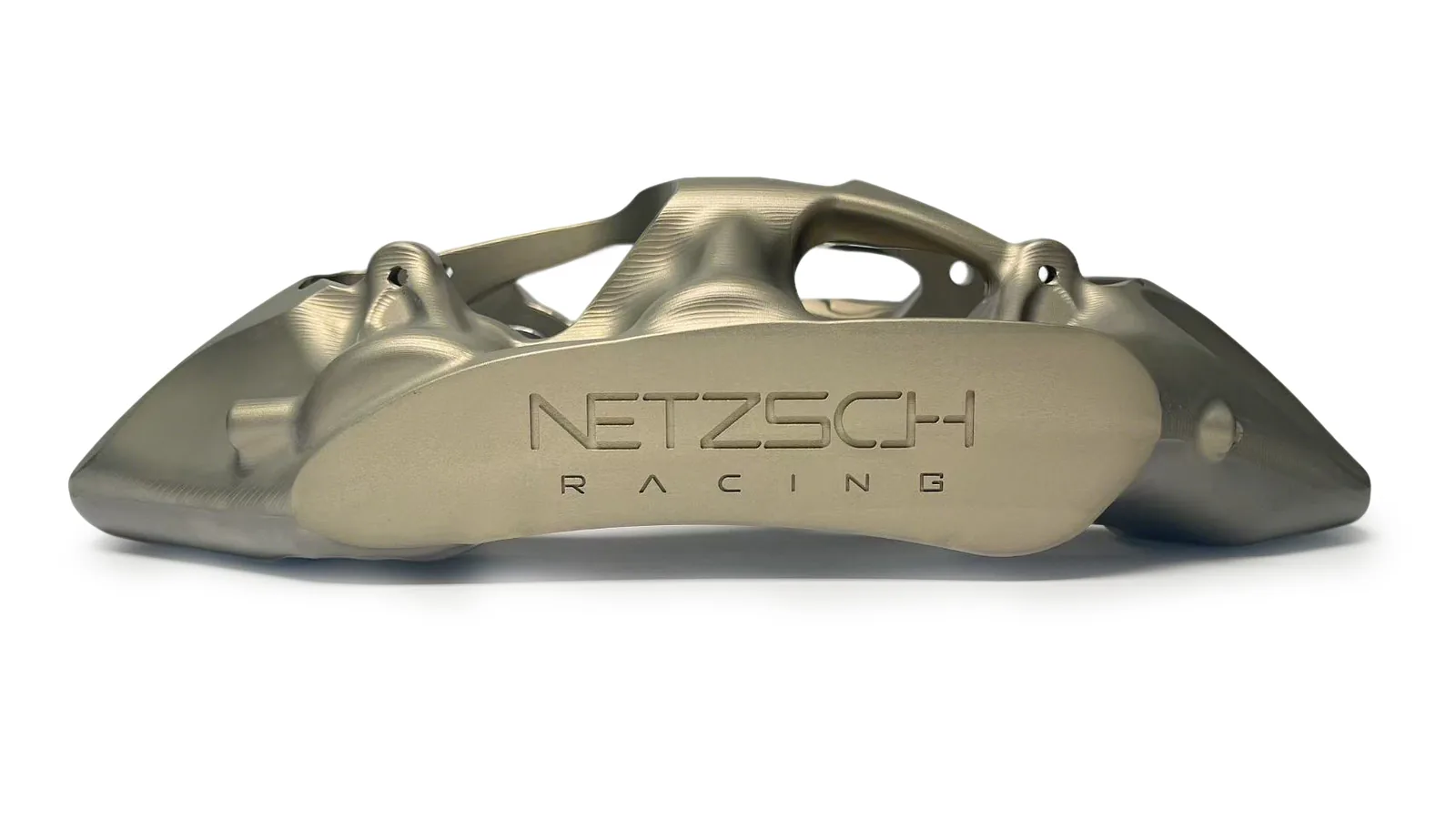

NG-6 in hard anodised grey

The colours drawn in pixels, and photographed by NETZSCH.

In real life

NG-6 as it leaves the factory, photographed by NETZSCH.

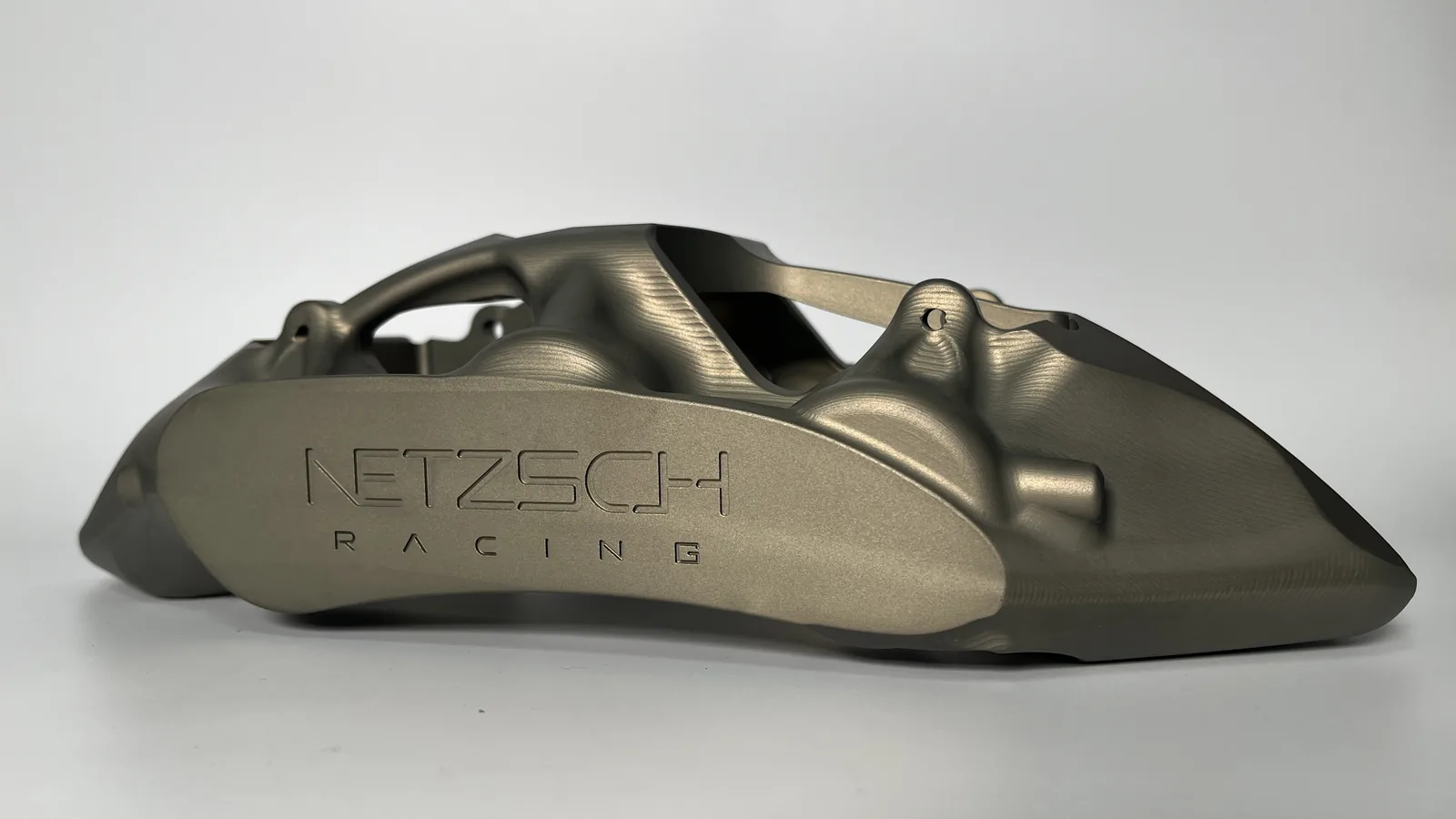

NG-6 outer face, low three-quarter

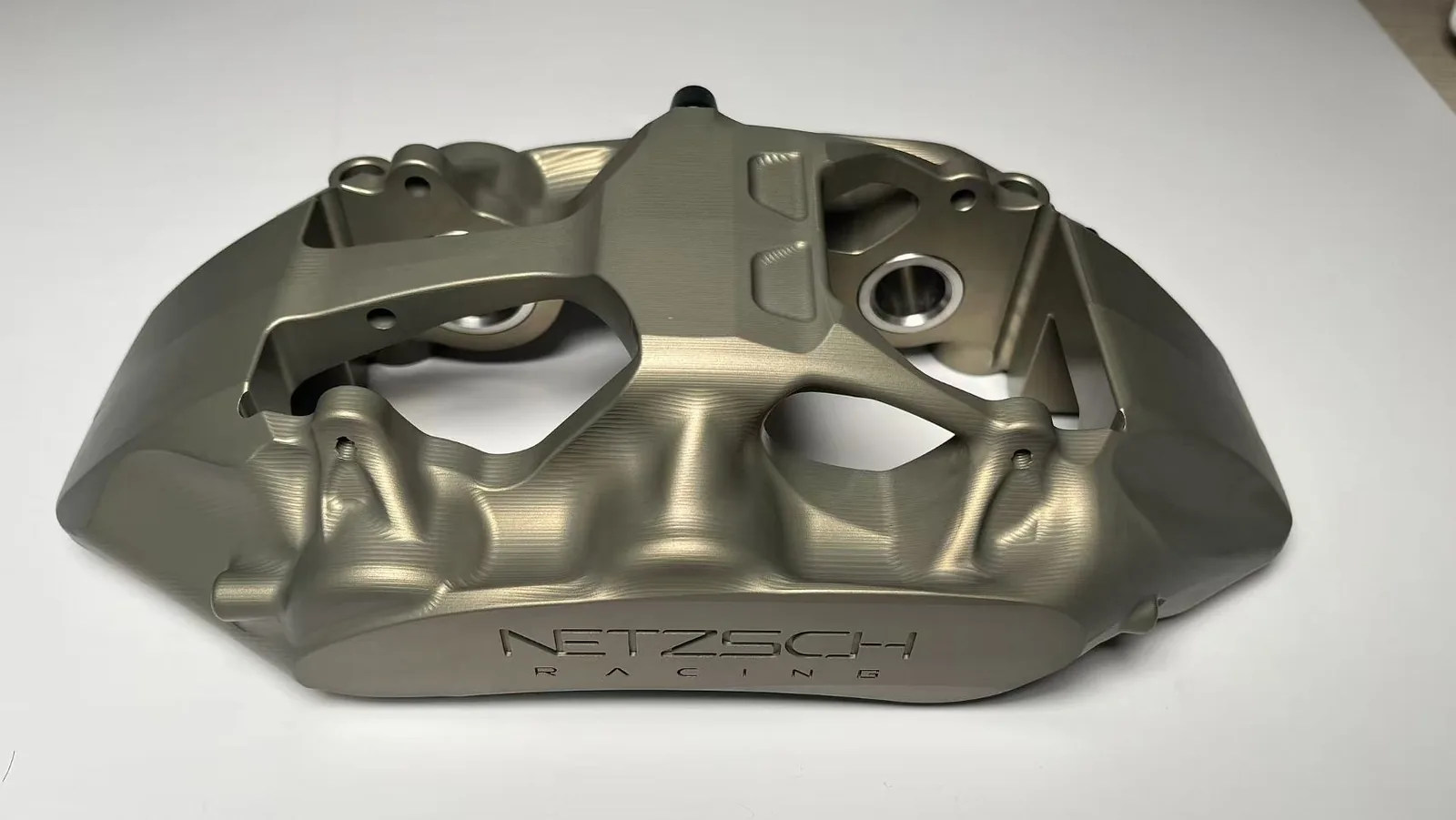

NG-6 from above at an angle

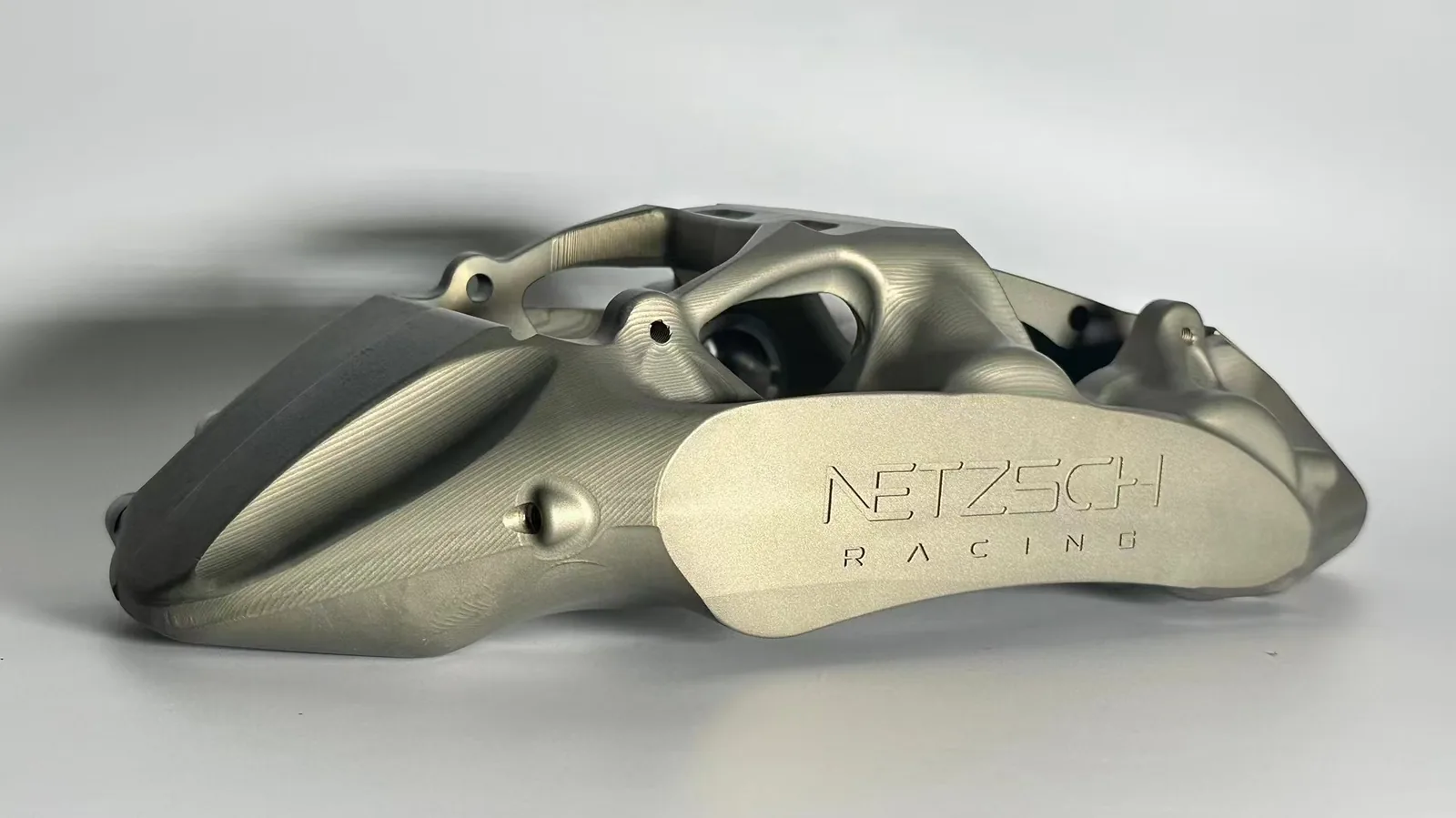

NG-6 from the end, the bolts that join its two halves

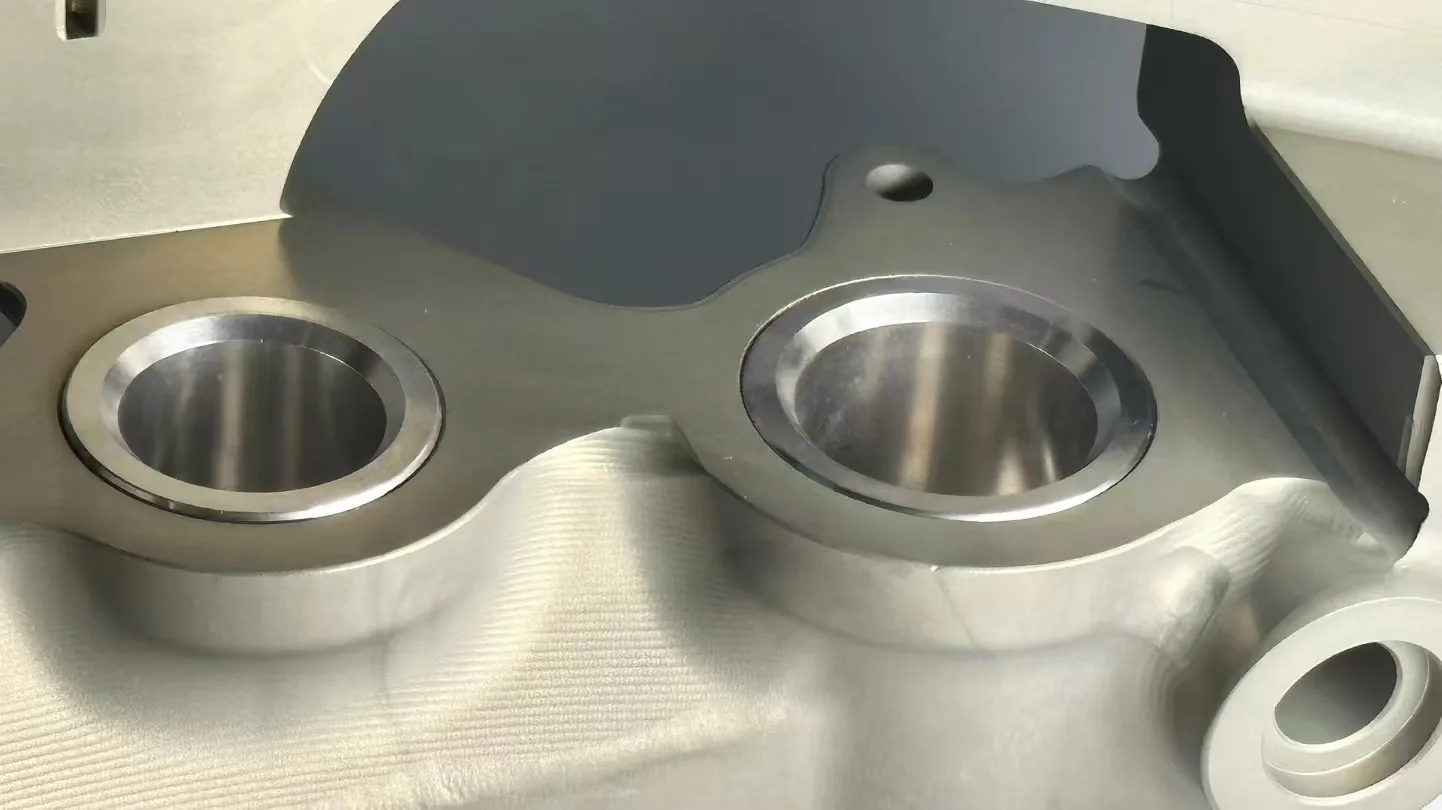

NG-6 piston bores, machined

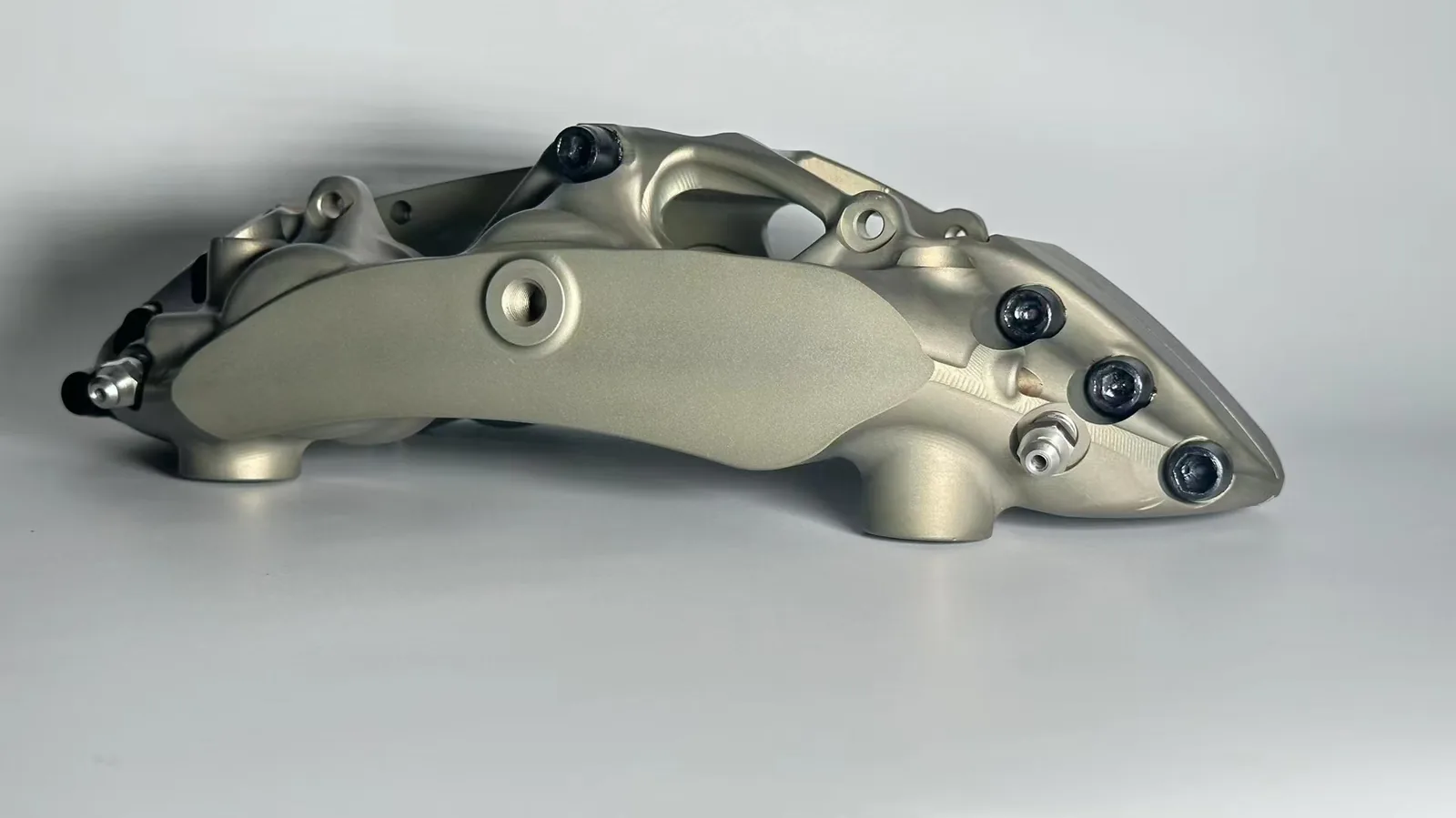

NG-6 inner side

Better together

NG-6 works with N145 discs and a street-race pad: NG50 or NF42.

N145 two-piece discN145One disc formula for the street and the trackNG50 brake padsNG50High Performance Street Racing, rated to 800°CNF42 brake padsNF42High Performance Street Series, rated to 600°C

Tech specs

Pistons6: Ø38, Ø34 and Ø30 mm
Piston area54.95 cm²
Pad area76 cm²
Weight2.58 kg body, 3.24 kg with pistons
Size (L × W × H)321.67 × 159.16 × 101.44 mm
ConstructionTwo-piece forging, 7075 aluminium
Mount spacing180 mm
Mount offset54 mm
Mount hole12.2 mm
BoltsM12-60
Discs355 × 36 or 34 mm (K56 or K62) for 18 to 19 in wheels, front; 380 × 36 or 34 mm (K62) for 19 in and up wheels, front
FinishesRed, yellow, blue, white, or hard anodised grey
Works withNG50 · NF42 pads, N145 discs

The three calipers

NH-6NH-6Forged in one piece.6 pistons · 3.7 kgNH-4NH-4Stiff and light, at once.4 pistons · 2.66 kgNG-6NG-6For the street and the track.6 pistons · 3.24 kg

Which one fits my car?

NG-6 is in the Store

Caliper pairs and kits with N145 discs, brackets and lines matched to your car.

Go to the Store
