NH-6

Forged in one piece.

Six pistons in one block of 7075 aluminium, for racing and for cars up to 3,000 kg.

NH-6 caliper, pixel art

Now, the real one

NH-6, photographed: one-piece forging, 7075 aluminium, hard anodised, 344 × 207 × 86 mm.

NH-6, photographed
NH-6 from the outer faceNH-6 from the bridge

One block of 7075

NH-6 is forged in one piece from 7075 aluminium. The forged body is strong and has high tensile strength.

Stiff where the load goes

The forging is asymmetric, so the material sits where the braking load pulls hardest.

Tested past the limit

Every body goes through an ultra-high-pressure test: no damage, no leaks and no bursts.

6 pistons, 61.9 cm2

Ø42Ø34Ø32

One side of the caliper, drawn to scale. The other side mirrors it.

3.7kg

Weight

344mm

Long

210mm

Mount spacing

42mm

Mount offset

Behind 18 and 19 in wheels

Front axle. Road vehicles in classes M1 and N1 up to 3,000 kg design gross mass: mid-size and large sedans, performance sedans, SUVs, pick-ups and new-energy cars.

Disc and wheel drawn to scale, with the NH-6 at its true length.

Hard anodised

NH-6 in hard anodised

NH-6 comes hard anodised: the surface of the aluminium is turned into a hard oxide layer, grey-green in the photographs.

NH-6 hard anodised, outer face

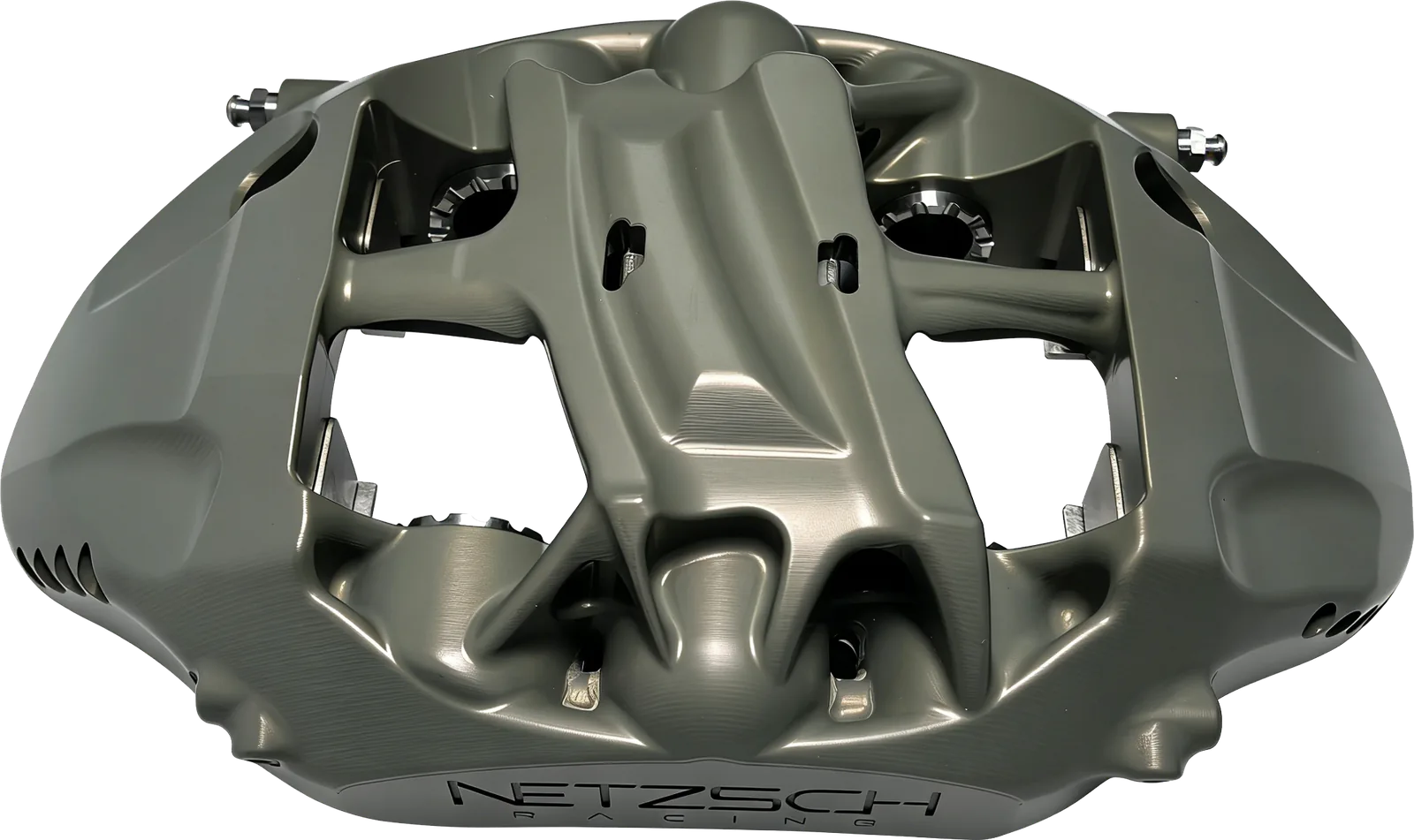

NH-6 hard anodised, from the bridge

The colours drawn in pixels, and photographed by NETZSCH.

In real life

NH-6 as it leaves the factory, photographed by NETZSCH.

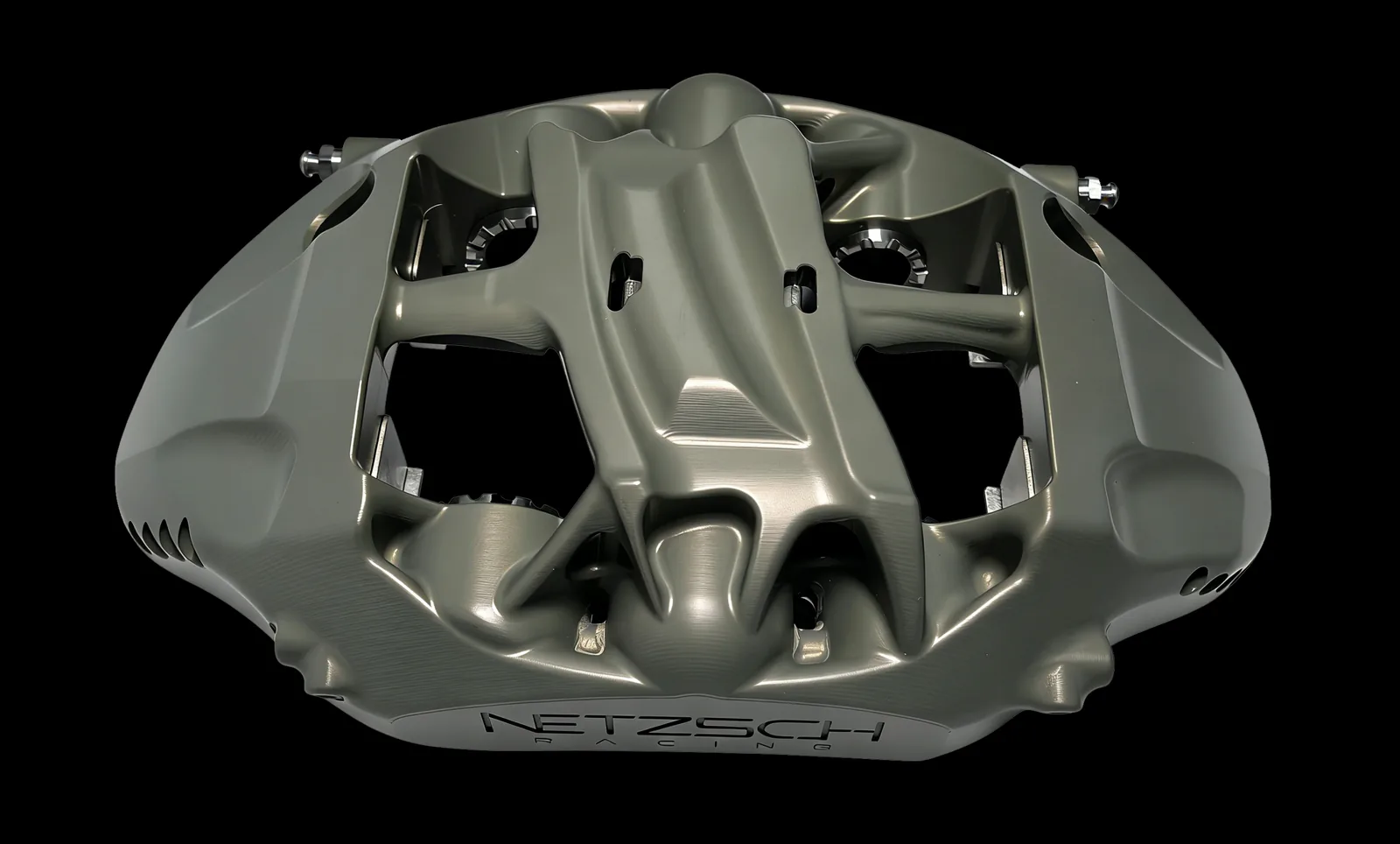

NH-6 from above on black: the bridge and its four pad windows

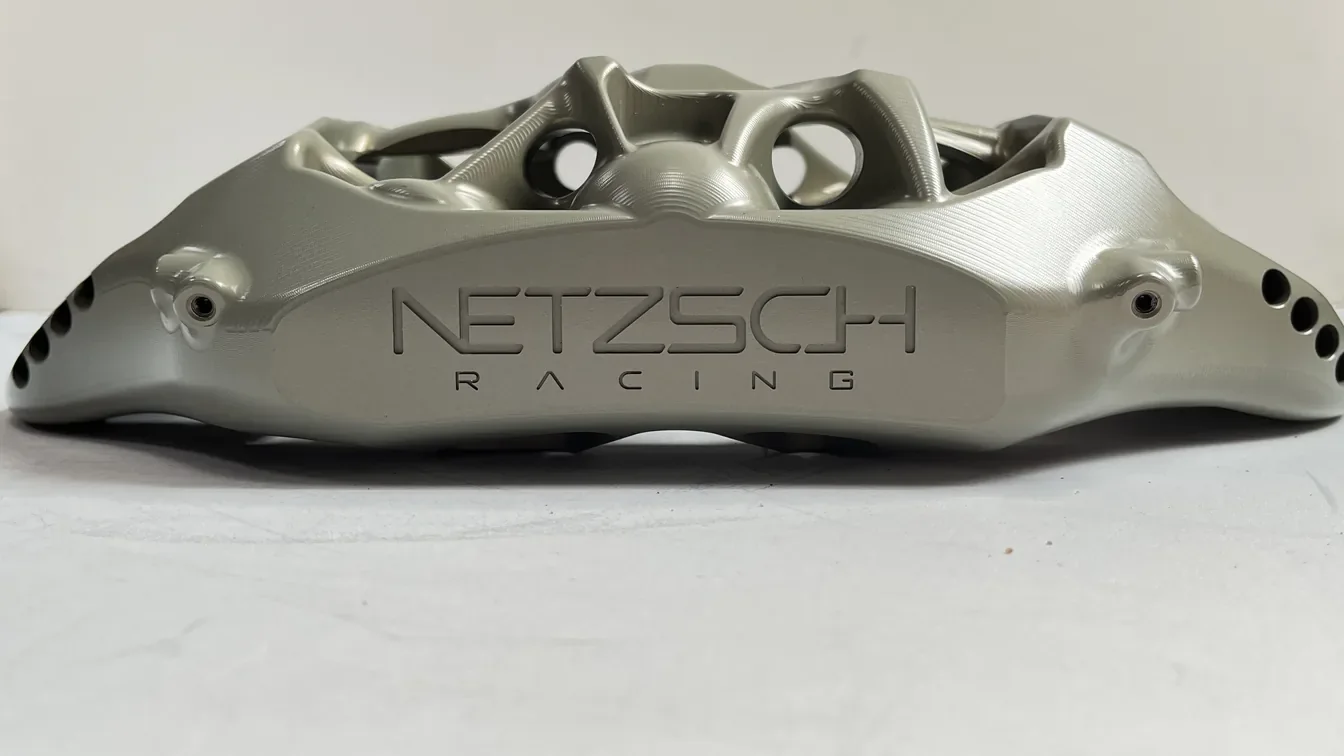

NH-6 outer face, hard anodised

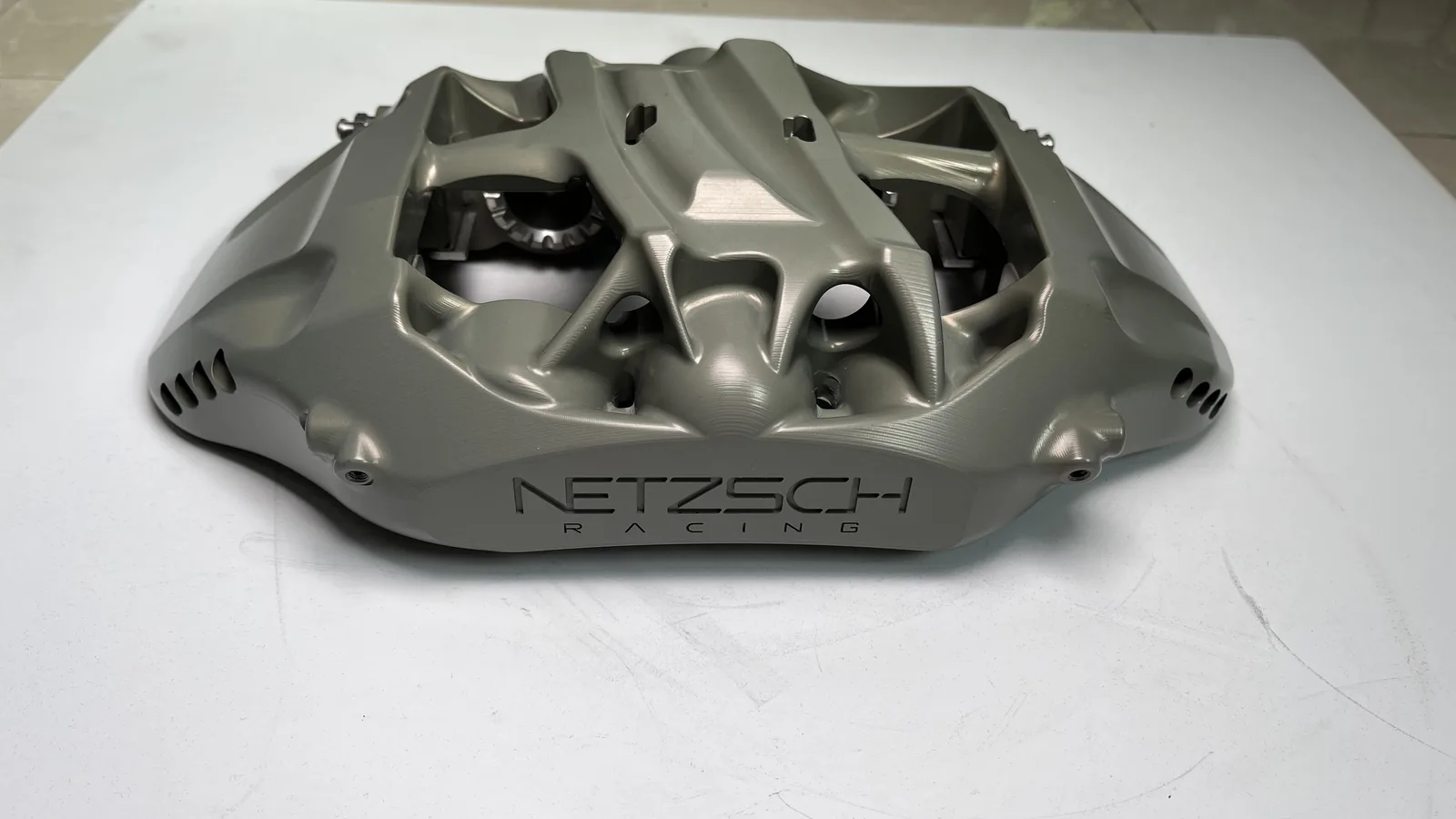

NH-6 from above, showing the forged ribs

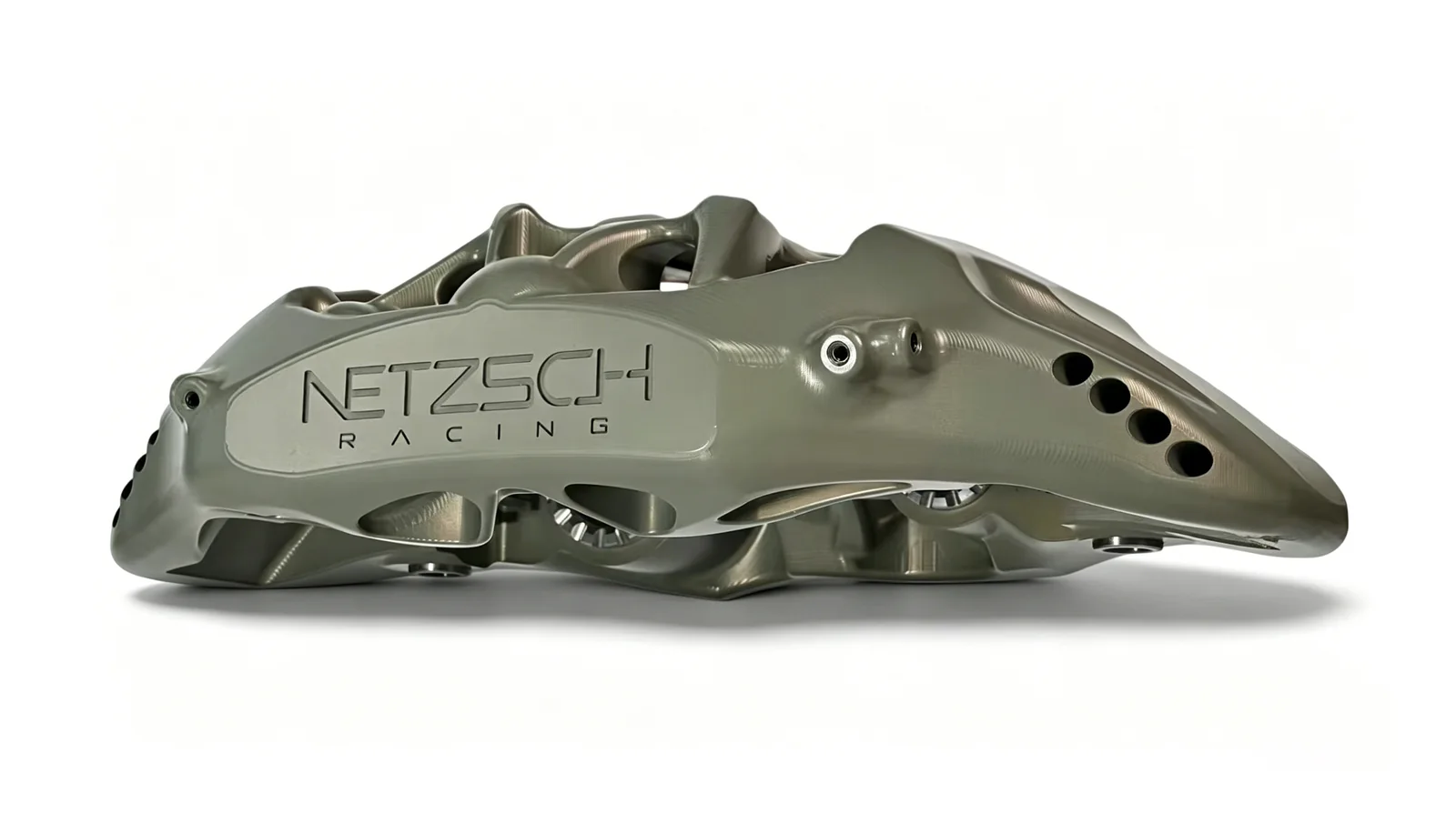

NH-6 outer face, the vent holes at its end

Better together

NETZSCH pairs NH-6 with NH70 race pads and N145 high-carbon race discs.

N145 two-piece discN145One disc formula for the street and the trackNH70 brake padsNH70GT Formula Race Edition, rated to 1200°CNH65 brake padsNH65High Performance Racetrack Series, rated to 900°C

Tech specs

Pistons6: Ø42, Ø34 and Ø32 mm
Piston area61.9 cm²
Weight3.7 kg
Size (L × W × H)344 × 207 × 86 mm
ConstructionOne-piece forging, 7075 aluminium
Mount spacing210 mm
Mount offset42 mm
Mount hole12.1 mm
Locating pin18 × 12.1 × 6 mm
Locating hole18.02 × 12.1 × 4 mm
Brake line threadM10 × 1
Discs355 × 32 or 36 mm for 18 in wheels, front; 378 × 32 or 36 mm for 19 in wheels, front
FinishesHard anodised
Works withNH70 · NH65 pads, N145 discs

The three calipers

NH-6NH-6Forged in one piece.6 pistons · 3.7 kgNH-4NH-4Stiff and light, at once.4 pistons · 2.66 kgNG-6NG-6For the street and the track.6 pistons · 3.24 kg
