Street-race caliper
Six pistons for the street and the track: plenty of braking force, delivered smoothly, with a fine and exact pedal. The pistons load the pad evenly, so it wears less and resists fade when hot. One caliper for the commute and the track day.
Fits: Mid-size sports and performance sedans: VW Golf GTI, Mercedes-AMG A45, Audi A4L, Ford Mustang. For street builds and club racing.
Disc and wheel
| Axle | N145 disc | Wheel |
|---|---|---|
| Front | 355 × 36 or 34 mm (K56 or K62) | 18 to 19 in |
| Front | 380 × 36 or 34 mm (K62) | 19 in and up |
Disc slot patterns and sizes can be chosen.
Specifications
| Pistons | 6: Ø38, Ø34 and Ø30 mm |
|---|---|
| Piston area | 54.95 cm² |
| Pad area | 76 cm² |
| Weight | 2.58 kg body, 3.24 kg with pistons |
| Size (L × W × H) | 321.67 × 159.16 × 101.44 mm |
| Construction | Two-piece forging, 7075 aluminium |
| Mount spacing | 180 mm |
| Mount offset | 54 mm |
| Mount hole | 12.2 mm |
| Bolts | M12-60 |
| Finishes | Red, yellow, blue, white, or hard anodised grey |
| Pairs with | NG50 · NF42 pads, N145 discs |
| Part number | In preparation |
Finishes

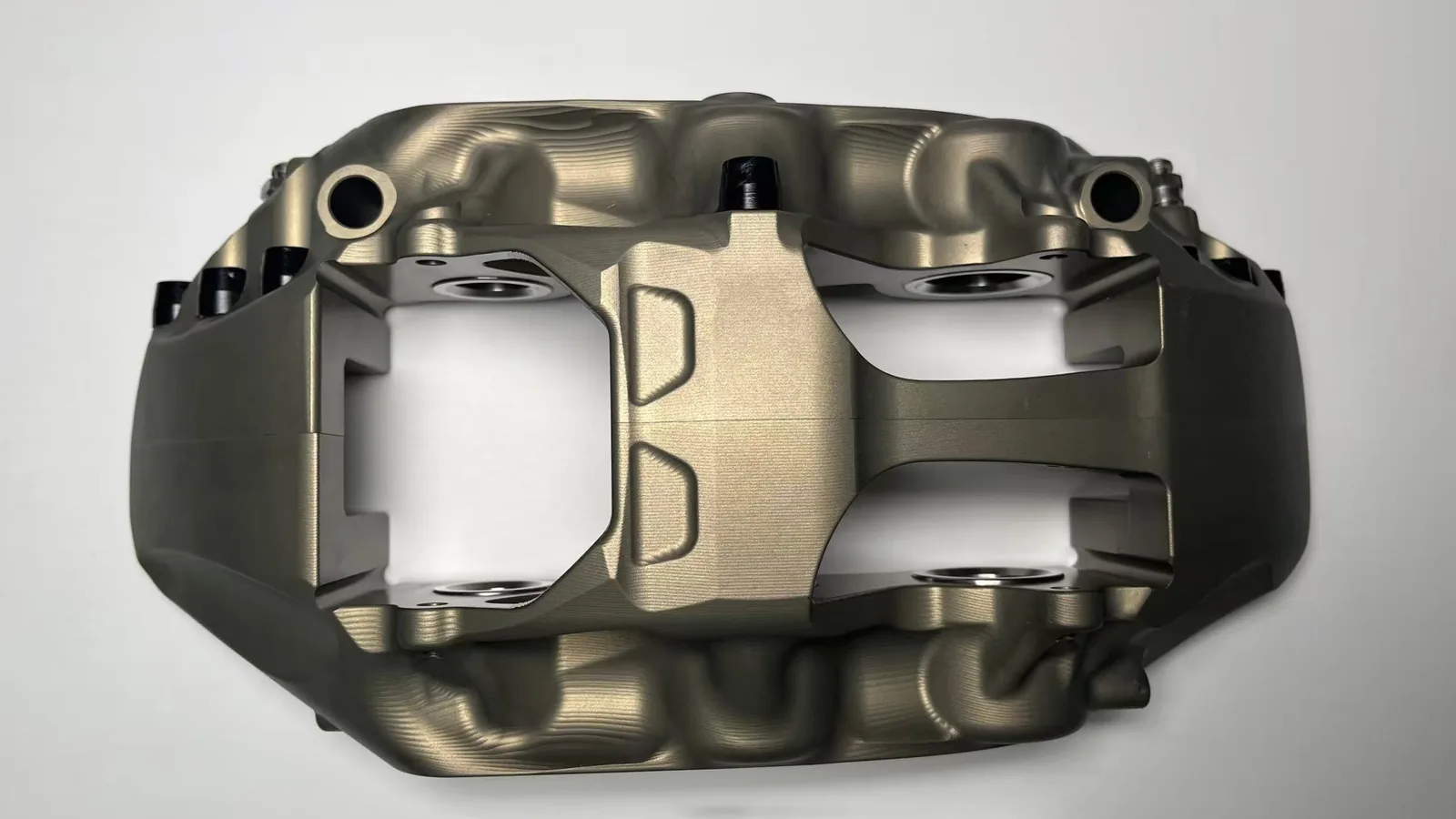

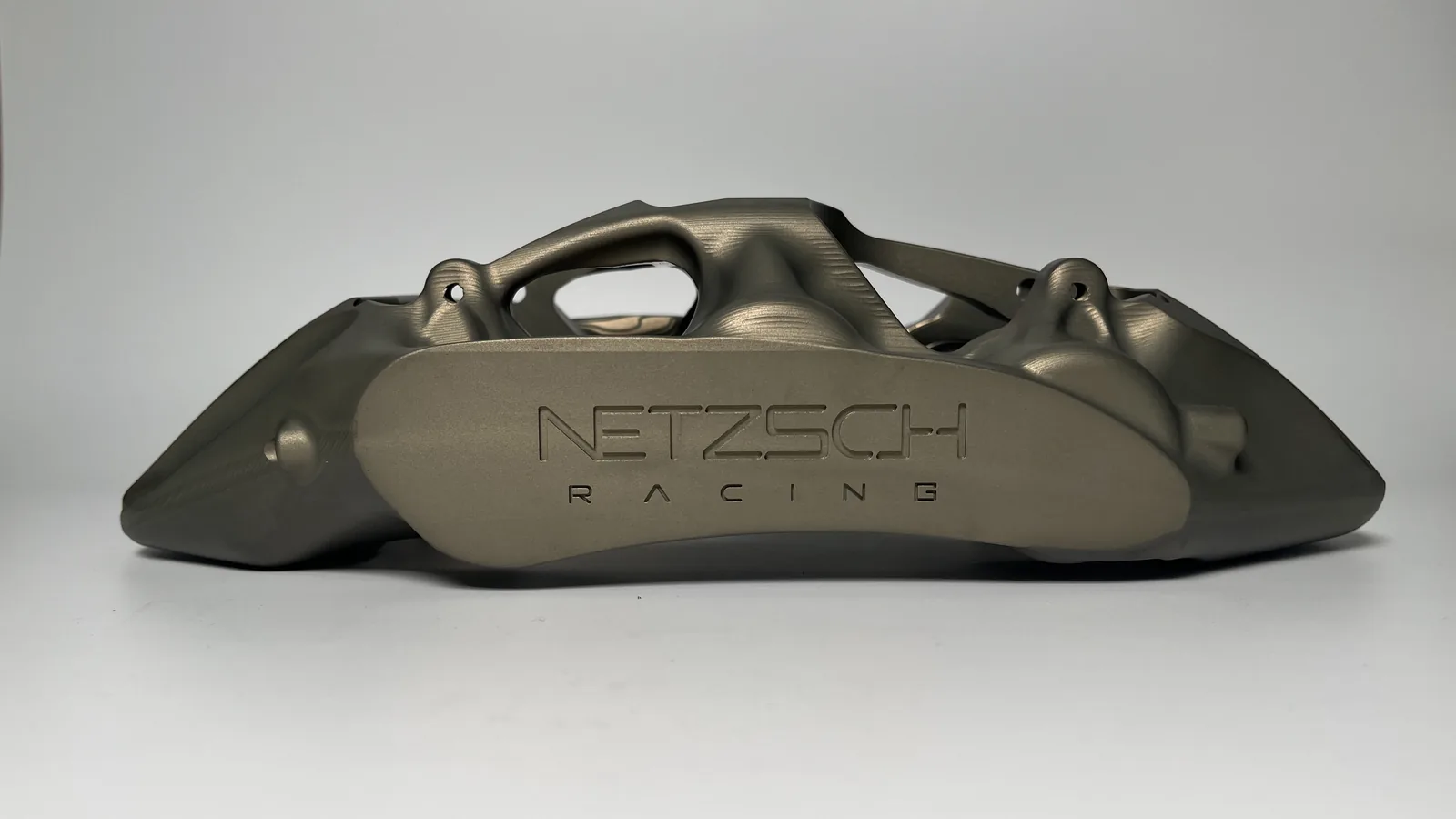

In real life
Photographed by NETZSCH.
