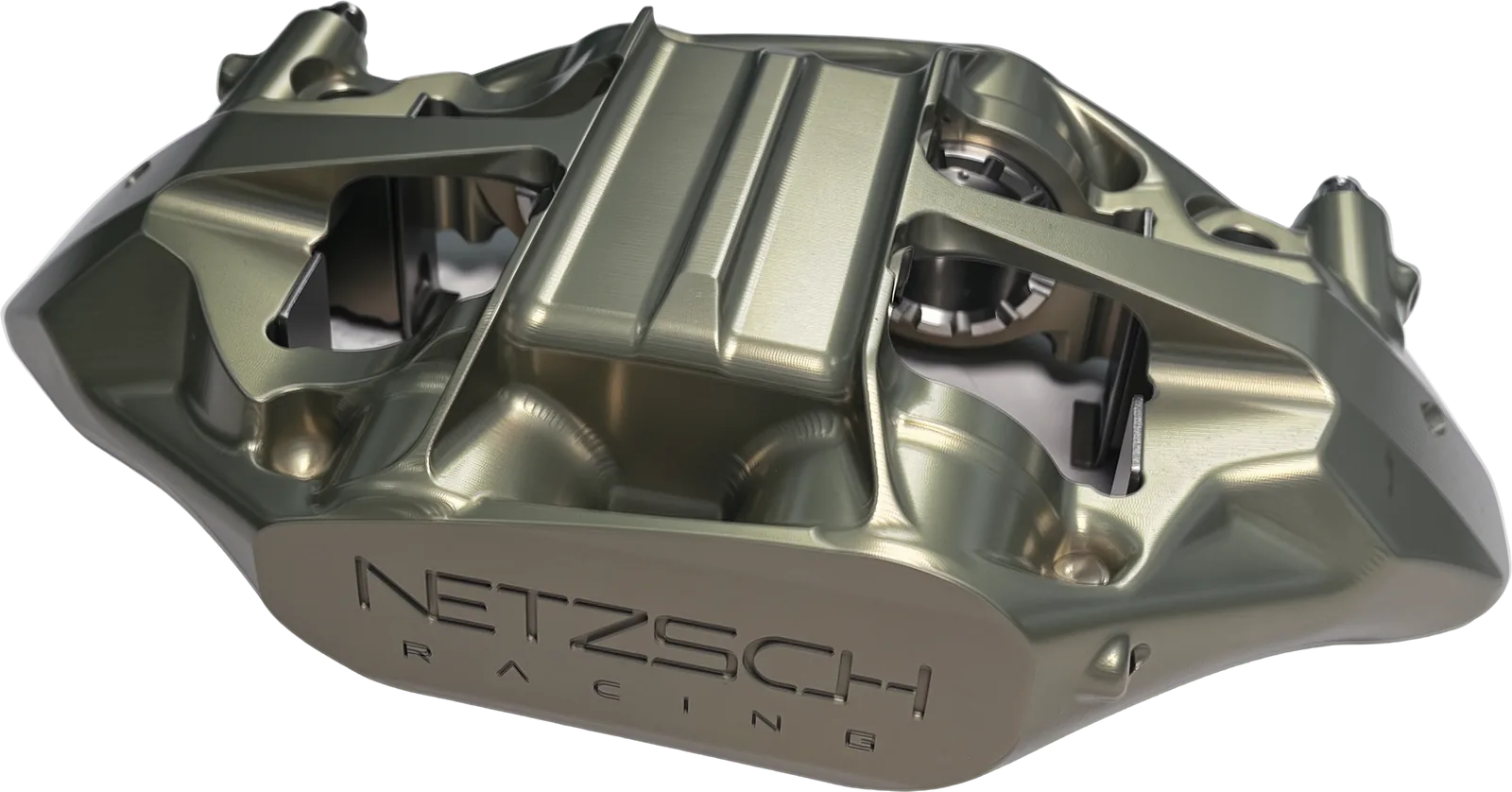

Race caliper
Forged in one piece from 7075 aluminium, so it is stiff and light at the same time. It stays consistent stop after stop on track, without the braking force fading away. It works best with NH70 race pads and N145 high-carbon race discs.
Fits: Light race and sports cars: Toyota 86, Subaru BRZ, Honda Civic Type R, BMW 1 Series, Audi S3.
Disc and wheel
| Axle | N145 disc | Wheel |
|---|---|---|
| Front or rear | 300 to 355 × 28, 30 or 32 mm | 15 to 19 in |
Specifications
| Pistons | 4: Ø44 and Ø38 mm |
|---|---|
| Piston area | 53.09 cm² |
| Pad area | 60.9 cm² |
| Weight | 2.66 kg |
| Size (L × W × H) | 281.2 × 149.3 × 72.9 mm |
| Construction | One-piece forging, 7075 aluminium |
| Piston inserts | Steel |
| Fluid volume | 95.56 mL |
| Mount spacing | 180 mm |
| Mount offset | 42 mm |
| Mount hole | 12.23 mm |
| Finishes | Hard anodised |
| Pairs with | NH70 · NH65 pads, N145 discs |
| Part number | In preparation |
Finishes
In real life
Photographed by NETZSCH.
